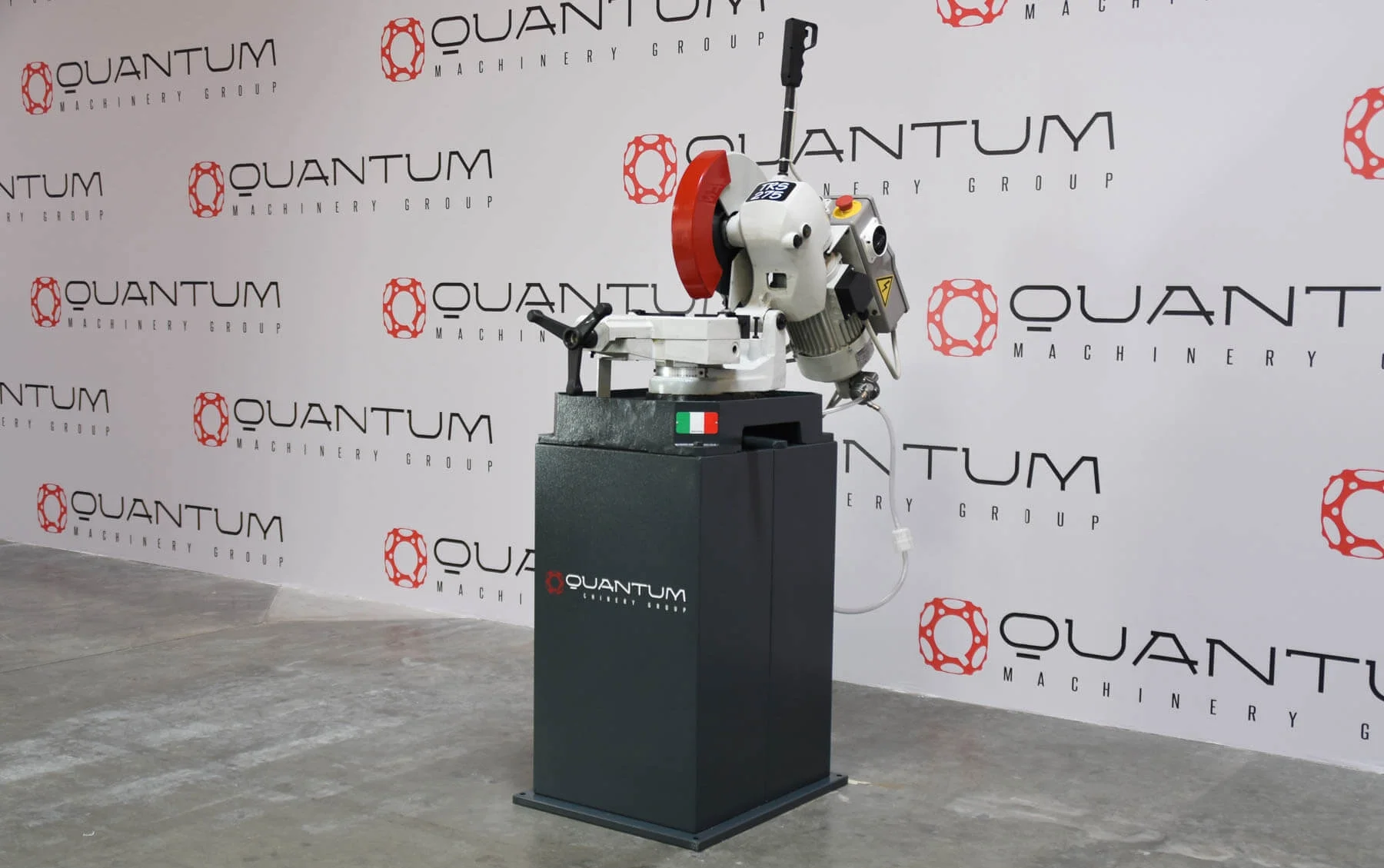

TRS 275 DV: MANUAL PIVOT-STYLE COLD SAW



Pricing starts at $2,900





The Quantum TRS 275 Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The TRS 275 is equipped with a double-vice and counter-vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.

Electrical: The TRS 275 DV can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

TRS 275 CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90 Degrees - 1.75"
  • Solid Round Cutting at 45 Degrees - 1.50"
  • Round Tube Cutting at 90 Degrees - 3.0"
  • Round Tube Cutting at 45 Degrees - 3.0"

- Maximum vice opening: 105mm (4.1")
- The TRS 275 DV can run at 2 different speeds: 40-80 R.P.M.

  • Square Tube Cutting at 90 Degrees - 3.0"
  • Square Tube Cutting at 45 Degrees - 2.75"
  • Rectangular Tube Cutting at 90 Degrees - 3.75"W x 2.75"H
  • Rectangular Tube Cutting at 45 Degrees - 3.0"W x 2.75"H

The TRS 275 is to be equipped with a 275mm blade.
(Our 275mm HSS Quantum Circular Cold Saw Blades are only $80 each!!)


REQUEST QUOTE FOR THE TRS 275 DV: MANUAL COLD SAW
