NTM 350-S: SEMI-AUTO DOUBLE-COLUMN COLD SAW


NTS 315 1.jpg


Pricing starts at $9,000

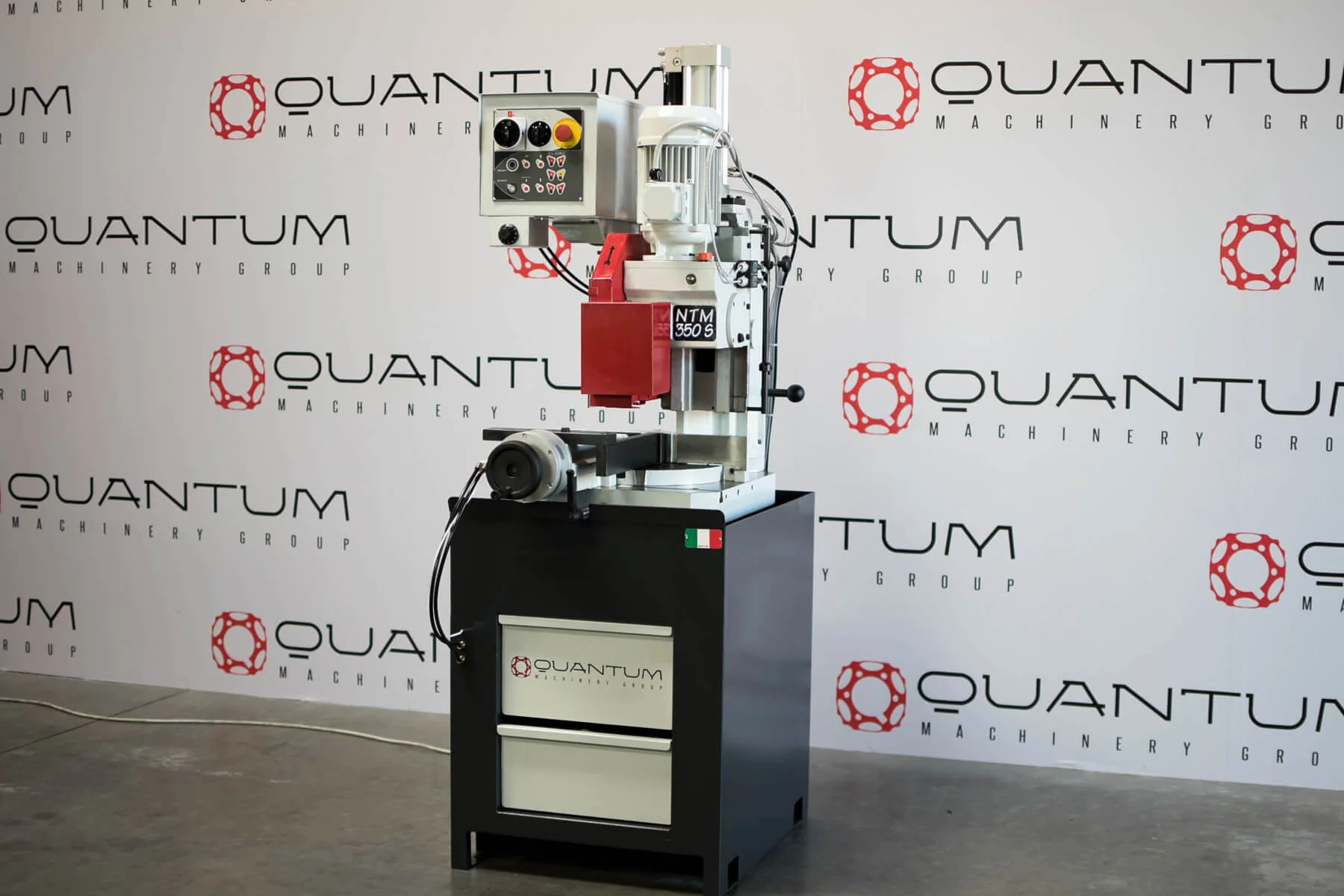

The Quantum NTM 350-S Vertical Semi-Automatic Cold Saw has a moveable head that can move up to 45 degrees right and 60 degrees left; and the head also has rotation stops at 45° - 0° - 45° - 60°. The NTM 350-S has a vice that is complete with an anti-burr device, motor pump for blade lubrication, shave breaker to keep the blade clean. This unit is equipped with a a 1 meter long bar stop, 1 meter long bar support arm, and service tools, as well as the machine's manual and steel pedestal. Electrical: The NTM 350-S can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

NTm 350-S CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90° (Straight Cut) - 3.75"
  • Solid Round Cutting at 45° Right - 3.75"
  • Solid Round Cutting at 45° Left - 3.75"
  • Solid Round Cutting at 60° Left - 3.50"
  • Round Tube Cutting at 90° (Straight Cut) - 4.50"
  • Round Tube Cutting at 45° Right - 4.50"
  • Round Tube Cutting at 45° Left - 4.50"
  • Round Tube Cutting at 60° Left - 3.50"

- Maximum vice opening: 185mm (7.25")
- The NTM 350-S can run at 2 different speeds: 33-66 R.P.M.

  • Square Tube Cutting at 90° (Straight Cut) - 3.75"
  • Square Tube Cutting at 45° Right - 3.50"
  • Square Tube Cutting at 45° Left - 3.50"
  • Square Tube Cutting at 60° Left - 3.50"
  • Rectangular Tube Cutting at 90° (Straight Cut) - 3.50" Height x 6.50" Width
  • Rectangular Tube Cutting at 45° Right - 3.50" Height x 4.75" Width
  • Rectangular Tube Cutting at 45° Left - 3.50" Height x 4.75" Width
  • Rectangular Tube Cutting at 60° Left - 3.50" Height x 3.50" Width

The NTM 350-S is to be equipped with a 350mm blade.
(Our 350mm HSS Quantum Circular Cold Saw Blades are only $120 each!!)

Operation:
Cycle start is obtained by pressing the relevant double start button. The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of blade motor
2. Cutting head down-stroke
3. Blade motor stop and return of head to initial position
4. Vice opening.
