NTM 350: MANUAL DOUBLE-COLUMN COLD SAW




Pricing starts at $7,000

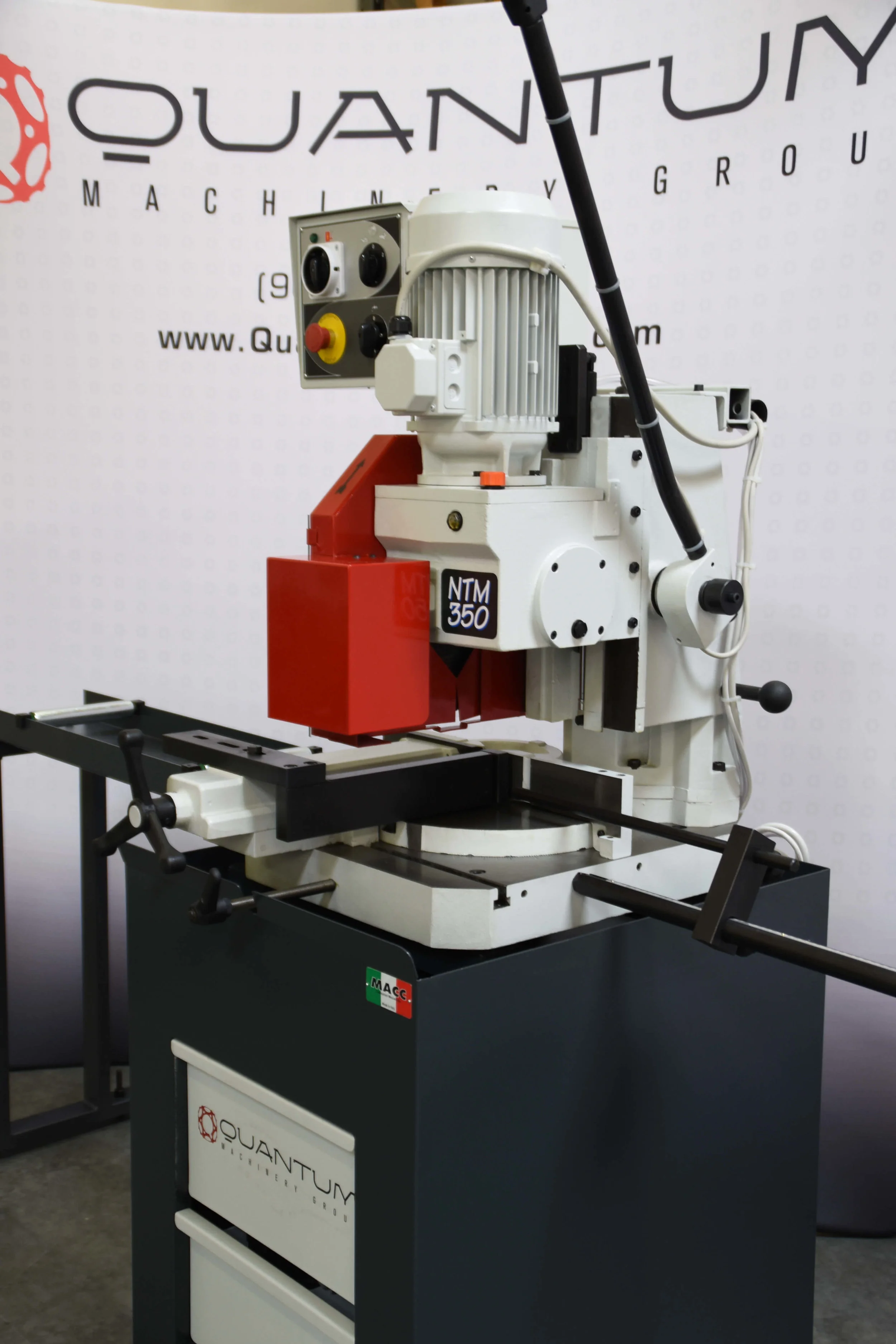

The Quantum NTM 350 Manual Cold Saw has a moveable head that can move up to 45 degrees right and 60 degrees left; and the head also has rotation stops at 45° - 0° - 45° - 60°. The NTM 350 has a vice that is complete with an anti-burr device, motor pump for blade lubrication, shave breaker to keep the blade clean. This unit is equipped with a a 1 meter long bar stop, 1 meter long bar support arm, and service tools, as well as the machine's manual and steel pedestal.

NTM 350 CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90° (Straight Cut) - 3.75"
  • Solid Round Cutting at 45° Right - 3.75"
  • Solid Round Cutting at 45° Left - 3.75"
  • Solid Round Cutting at 60° Left - 3.50"
  • Round Tube Cutting at 90° (Straight Cut) - 4.50"
  • Round Tube Cutting at 45° Right - 4.50"
  • Round Tube Cutting at 45° Left - 4.50"
  • Round Tube Cutting at 60° Left - 3.50"

- Maximum vice opening: 185mm (7.25")
- 2 Speeds: 36-72 R.P.M.

  • Square Tube Cutting at 90° (Straight Cut) - 3.75"
  • Square Tube Cutting at 45° Right - 3.50"
  • Square Tube Cutting at 45° Left - 3.50"
  • Square Tube Cutting at 60° Left - 3.50"
  • Rectangular Tube Cutting at 90° (Straight Cut) - 3.50" Height x 6.50" Width
  • Rectangular Tube Cutting at 45° Right - 3.50" Height x 4.75" Width
  • Rectangular Tube Cutting at 45° Left - 3.50" Height x 4.75" Width
  • Rectangular Tube Cutting at 60° Left - 3.50" Height x 3.50" Width

The NTM 350 is to be equipped with a 350mm blade.
(Our 350mm HSS Quantum Circular Cold Saw Blades are only $120 each!!)
