NTM 315: MANUAL DOUBLE-COLUMN COLD SAW




Pricing starts at $5,700

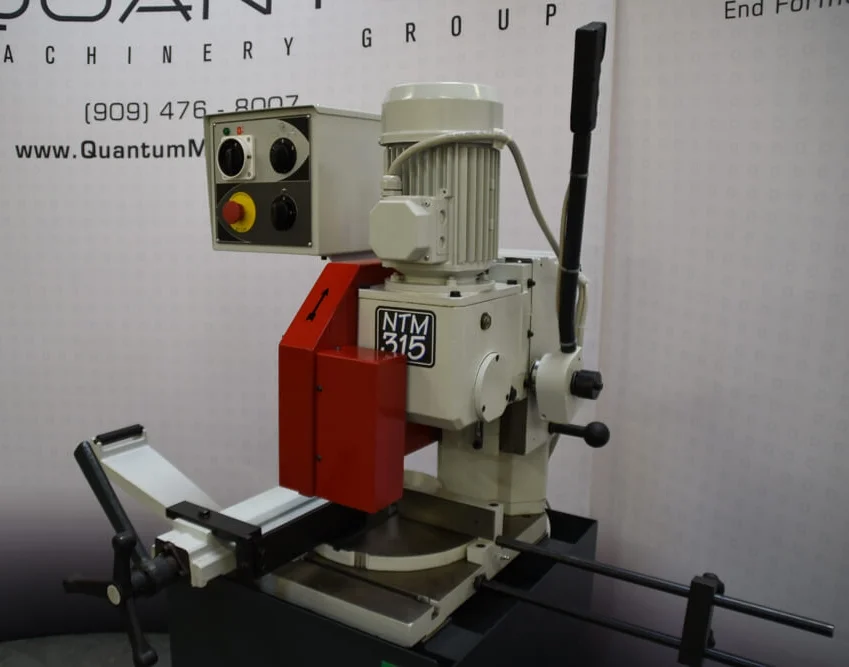

The Quantum NTM 315 Manual Vertical Cutting Off Cold Saw has a moveable head that can move up to 45 degrees right and 60 degrees left; and also has the adjustable head rotation stops at 45° - 0° - 45° - 60°. This unit is equipped with a vice that comes complete with the anti-burr device, a Motor Pump for Blade Lubrication, a Shave Breaker which keeps the blade clean, a Bar Stop, Bar Support Arm, and 24V Low Voltage Installation with Hold-to-Run Head Control Knob. Service tools also come with the machine, as well as the machine's manual and steel pedestal.

NTM 315 CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90° (Straight Cut) - 2.75"
  • Solid Round Cutting at 45° Right - 2.75"
  • Solid Round Cutting at 45° Left - 2.75"
  • Solid Round Cutting at 60° Left - 2.75"
  • Round Tube Cutting at 90° (Straight Cut) - 3.75"
  • Round Tube Cutting at 45° Right - 3.75"
  • Round Tube Cutting at 45° Left - 3.75"
  • Round Tube Cutting at 60° Left - 3.0"

- Maximum vice opening: 160mm (6.25")
- 2 Speeds: 33-66 R.P.M.

  • Square Tube Cutting at 90° (Straight Cut) - 3.50"
  • Square Tube Cutting at 45° Right - 3.50"
  • Square Tube Cutting at 45° Left - 3.50"
  • Square Tube Cutting at 60° Left - 2.75"
  • Rectangular Tube Cutting at 90° (Straight Cut) - 3.0" Height x 5.25" Width
  • Rectangular Tube Cutting at 45° Right - 3.0" Height x 3.75" Width
  • Rectangular Tube Cutting at 45° Left - 3.0" Height x 3.75" Width
  • Rectangular Tube Cutting at 60° Left - 2.75" Height x 2.75" Width

The NTM 315 is to be equipped with a 315mm blade.
(Our 315mm HSS Quantum Circular Cold Saw Blades are only $100 each!!)
