NEW 350 EDV: MANUAL PIVOT-STYLE COLD SAW




Pricing starts at $4,450

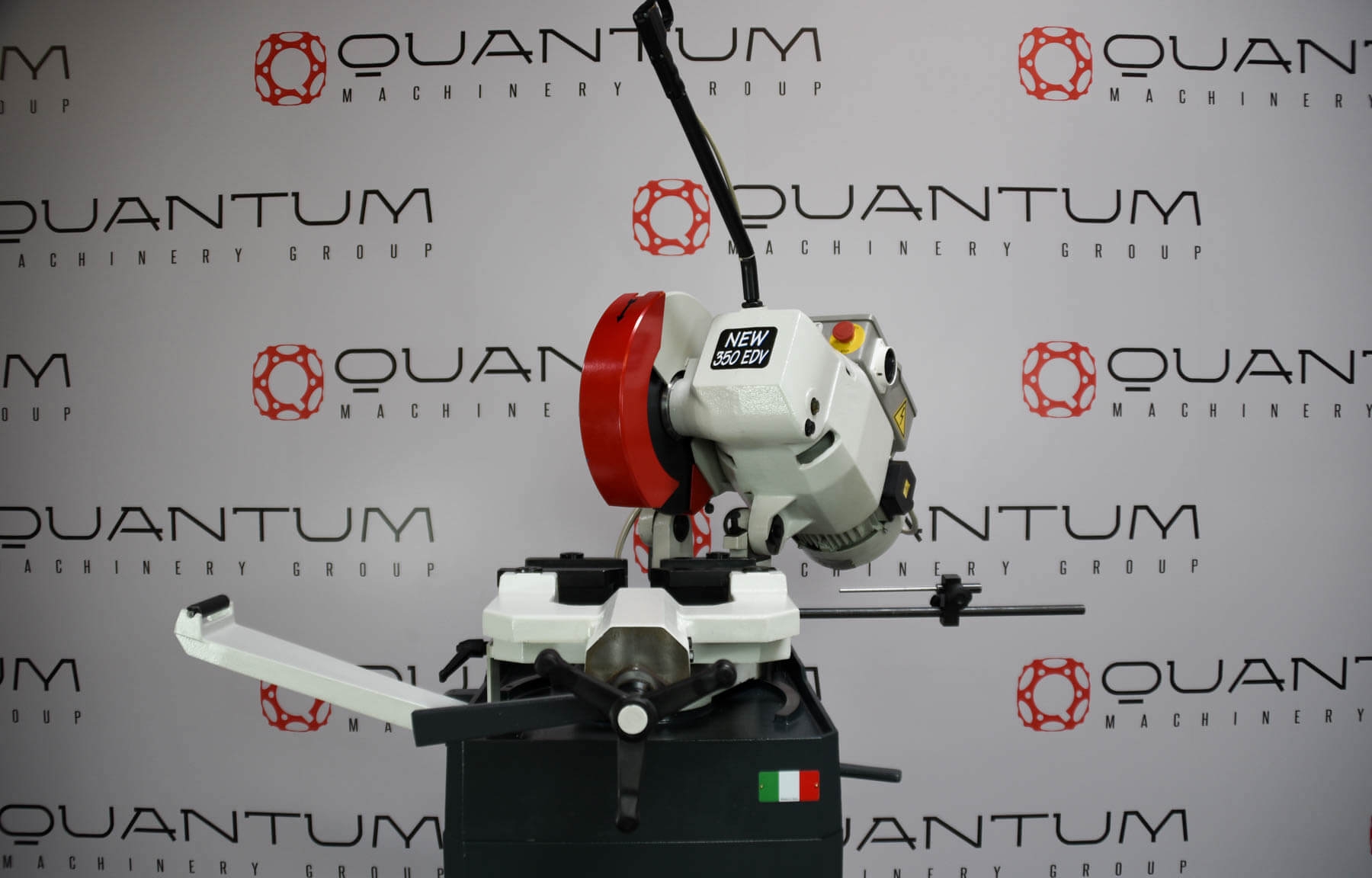

The Quantum Machinery NEW 350 EDV Manual Cold Saw has a moveable head that swivels 45 degrees left and 90 degrees right. The reduction unit is in an oil bath with a double hinged pin that has an eccentric bush. The NEW 350 EDV Cold Saw is equipped with a dual quick-locking vice and a sliding counter-vice for longitudinal cutting. Has a 0.035kW power-driven pump for band cooling, along with a coolant filter. This unit is also equipped with a Jet Separation System to keep the blade oiled, has a Bar Support Arm, and a Bar Stop. Manual, service tools and steel pedestal come with the machine.

Electrical: The NEW 350 EDV can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

NEW 350 EDV CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90 Degrees - 2.25"
  • Solid Round Cutting at 45 Degrees - 2.0"
  • Round Tube Cutting at 90 Degrees - 4.25"
  • Round Tube Cutting at 45 Degrees - 3.0"

- Maximum vice opening: 120mm (4.70")
- The NEW 350 EDV can run at 2 different speeds: 40-80 R.P.M.

  • Square Tube Cutting at 90 Degrees - 3.75"
  • Square Tube Cutting at 45 Degrees - 3.0"
  • Rectangular Tube Cutting at 90 Degrees - 4.50"W x 3.0"H
  • Rectangular Tube Cutting at 45 Degrees - 3.0"W x 3.0"H

The NEW 350 EDV is to be equipped with a 350mm blade.
(Our 350mm HSS Quantum Circular Cold Saw Blades are only $120 each!!)
