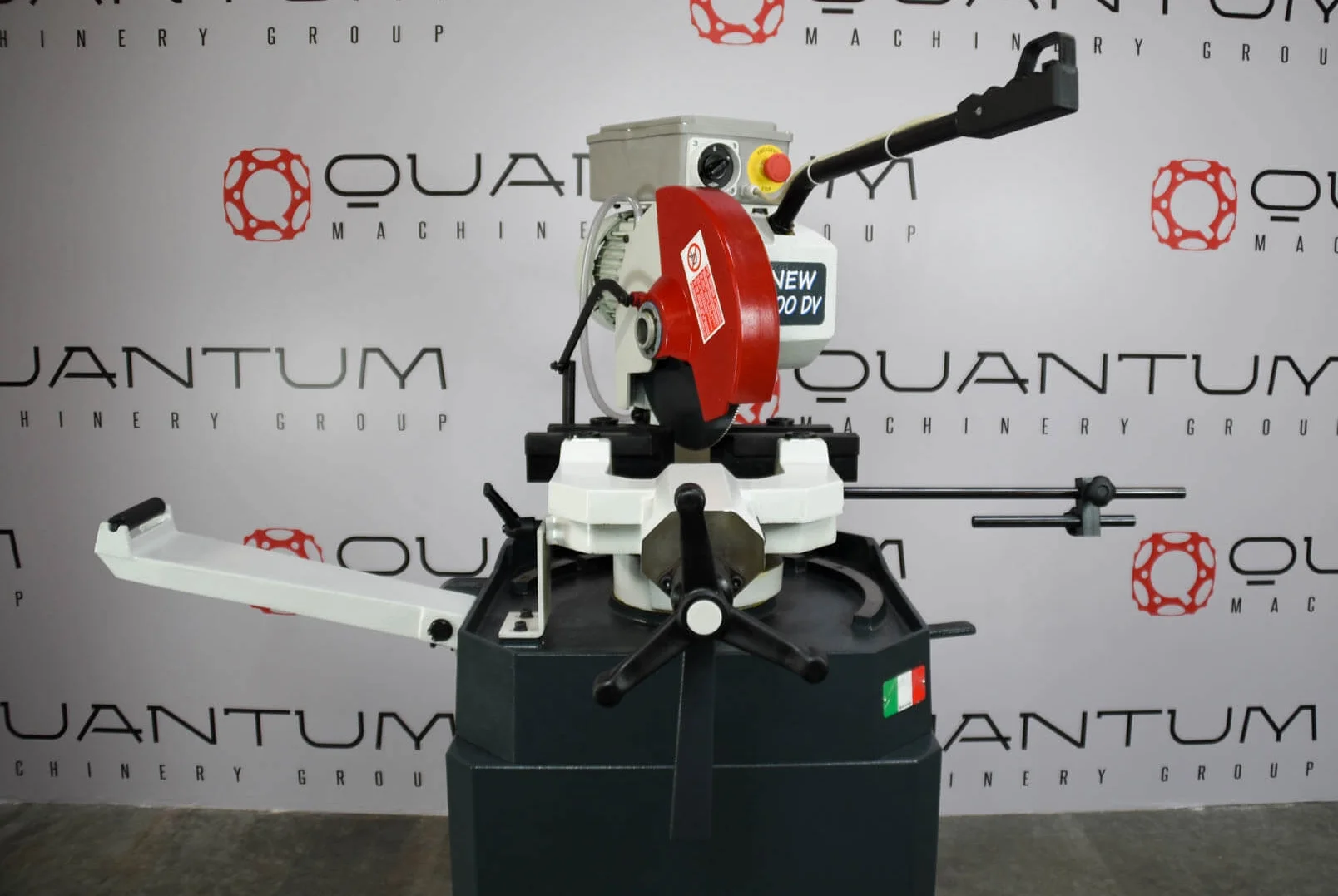

NEW 300 EDV: MANUAL PIVOT-STYLE COLD SAW




Pricing starts at $3,750




The Quantum NEW 300 EDV Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The NEW 300 EDV is equipped with a sliding counter dual vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.

Electrical: The NEW 300 EDV can be brought in at either 220 Volt / 3 Phase / 60Hz or 480 Volt / 3 Phase / 60Hz.

NEW 300 EDV CUTTING CAPACITIES AND SPECIFICATIONS:

  • Solid Round Cutting at 90 Degrees - 2.0"
  • Solid Round Cutting at 45 Degrees - 1.75"
  • Round Tube Cutting at 90 Degrees - 3.50"
  • Round Tube Cutting at 45 Degrees - 3.0"

- Maximum vice opening: 120mm (4.7")
- The NEW 300 EDV can run at 2 different speeds: 40-80 R.P.M.

  • Square Tube Cutting at 90 Degrees - 3.0"
  • Square Tube Cutting at 45 Degrees - 2.75"
  • Rectangular Tube Cutting at 90 Degrees - 4.50"W x 2.75"H
  • Rectangular Tube Cutting at 45 Degrees - 2.75"W x 2.75"H

The NEW 300 EDV is to be equipped with a 300mm blade.
(Our 300mm HSS Quantum Circular Cold Saw Blades are only $90 each!!)
